Lanemark TX Tank Heating Burner
Product Description:

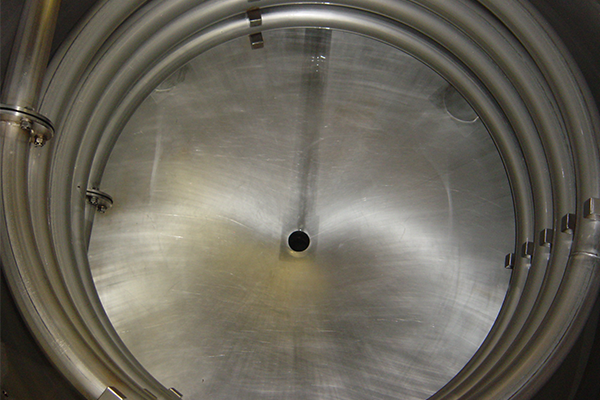

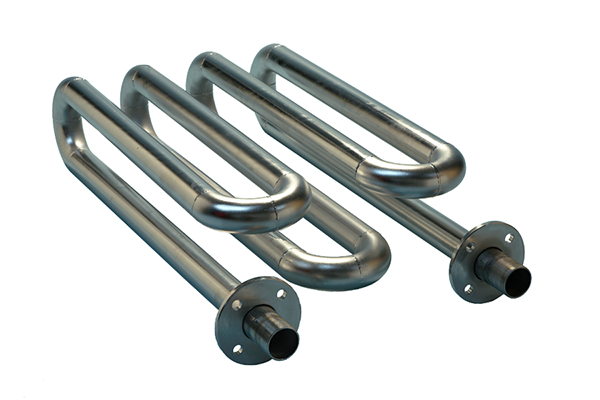

Tube diameters, lengths and number of passes can all be selected to match the performance and dimensional requirements of each installation. Operating on either natural gas or propane, multiple burner systems can be connected to a common exhaust fan without sacrificing individual burner control.
Lanemark TX series tank heating burners are widely proven in a range of applications worldwide from product finishing (including metal or plastic parts, steel strip and wire production) and cleaning (for example, industrial tray washing) to food and drink production (typically, hot water tanks, mini breweries, CIP and scalders).

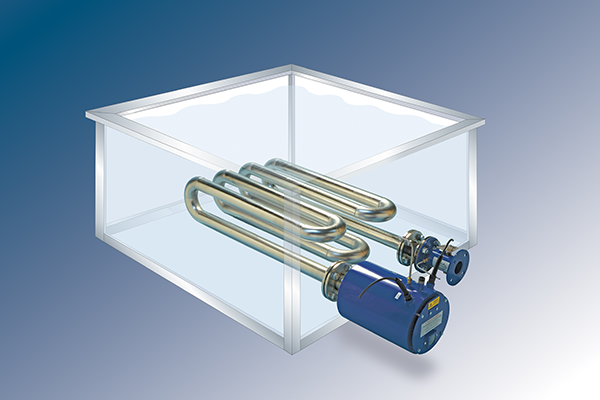

Each Lanemark TX tank heating installation comprises a burner mounted on the outside of a process tank which fires through the tank wall into an immersed tubular heat exchanger.
Connected to the outlet of the heat exchanger is an exhaust fan that provides necessary combustion air pulled through the tube arrangement to achieve even heat distribution and high levels of operational effectiveness.
- Choice of burner heat inputs up to 1150 kW
- High-efficiency levels in excess of 80%
- Proven in a wide range of application environments
- Customised design
Applications:
Industries:
Product SKU:

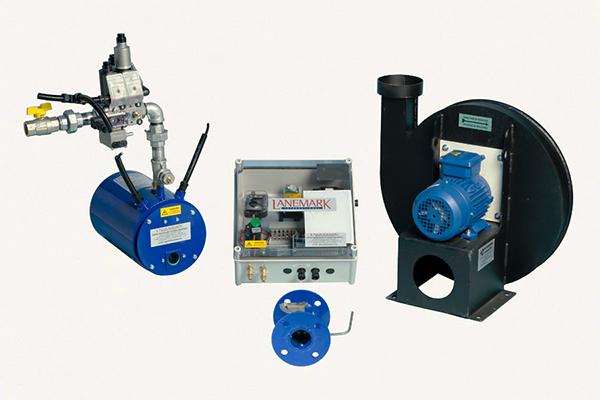

Each Lanemark TX immersion tube burner system includes
- a) TX Burner assembly built to withstand typical industrial tank heating operating environments
- b) Compact monoblock gas valve train
- c) Burner controls mounted in a protective control panel (including a digital temperature controller, liquid level controller etc.)
- d) Exhaust damper
- e) Exhaust fan (either an individual or shared for multiple TX burner installations).
| Standard | Options | |
|---|---|---|
| Fuels | Natural gas | Propane |
| Control voltage | 230V/1ph/50Hz | 110V/1ph/50-60Hz |
| Fan Voltage | 400V/3ph/50Hz | 230V/1ph/50Hz 460V/3ph/60Hz |
| Flame sensing | Flame electrode | UV |
| Control options | On/off or High/low/off | Modulating |
