Lanemark Midco HMA2A
Product Description:

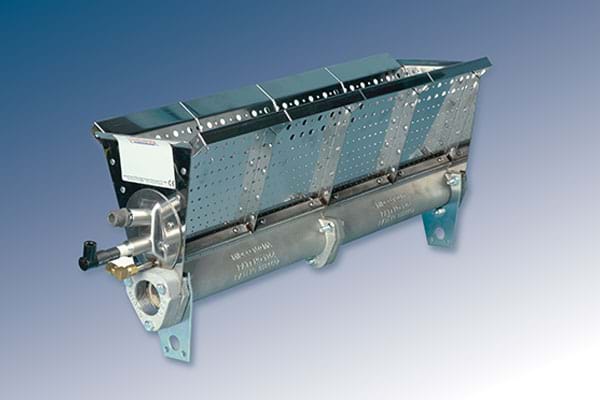

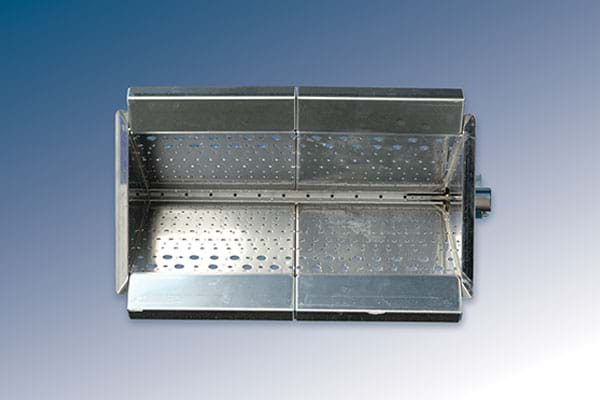

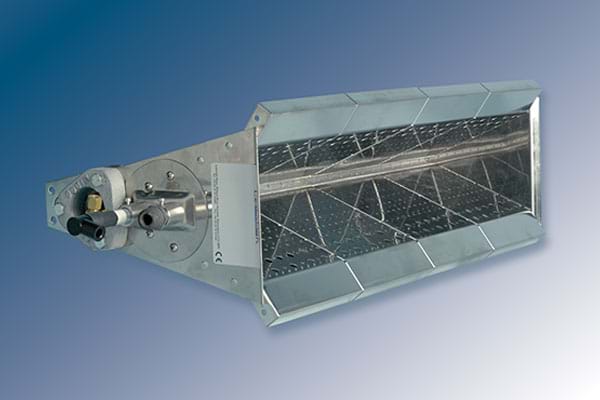

Lanemark Midco HMA2A series air heating duct burner systems can be configured either as straight sections or in various shapes, such as H or I-shaped designs by the use of compact elbows and tees to fit within required duct dimensions.
Gas manifolds are available in cast iron and aluminium, significantly reducing the weight of larger burner assemblies.
Applications:
- Baking
- Drying
- Industrial Heating
- Process Heating
- Thermal Comfort
- Spray Booth Heating
- Drying and Curing Ovens
Industries:
- Agriculture
- Food and Beverage
- General Industry
- Manufacturing
- Hospitality
Product SKU:
Heat Input: 146 – 205kW per 305 mm section length
Air Velocity: 7.5 – 18 m/s
Required Air Pressure: 0.5 – 3.0 mbar (50 – 300 Pa)
Turndown: 30:1 max
Typical Flame Length: Natural Gas: 280 – 405 mm; LPG: 205 – 330 mm
Efficiency: 100% (LHV) or 92% (HHV)
Burner Head Gas Pressure: Natural Gas: 8.8 – 19.5 mbar; LPG: 3.3 – 7.5 mbar
Burner Head Orientation: Parallel to process airflow
