Steam Boiler Repairs at Tegel Foods
By offering site servicing of these commercial boilers, we can ensure that everything is running smoothly and working efficiently.
Recently at routine checks with Tegel Foods, Nu-Way Energy’s Christchurch Branch completed major repairs on one of their steam boilers.

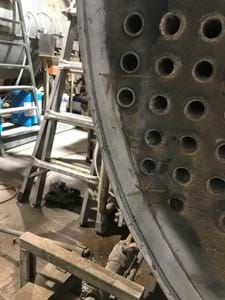

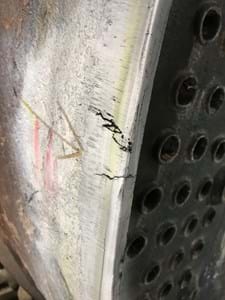

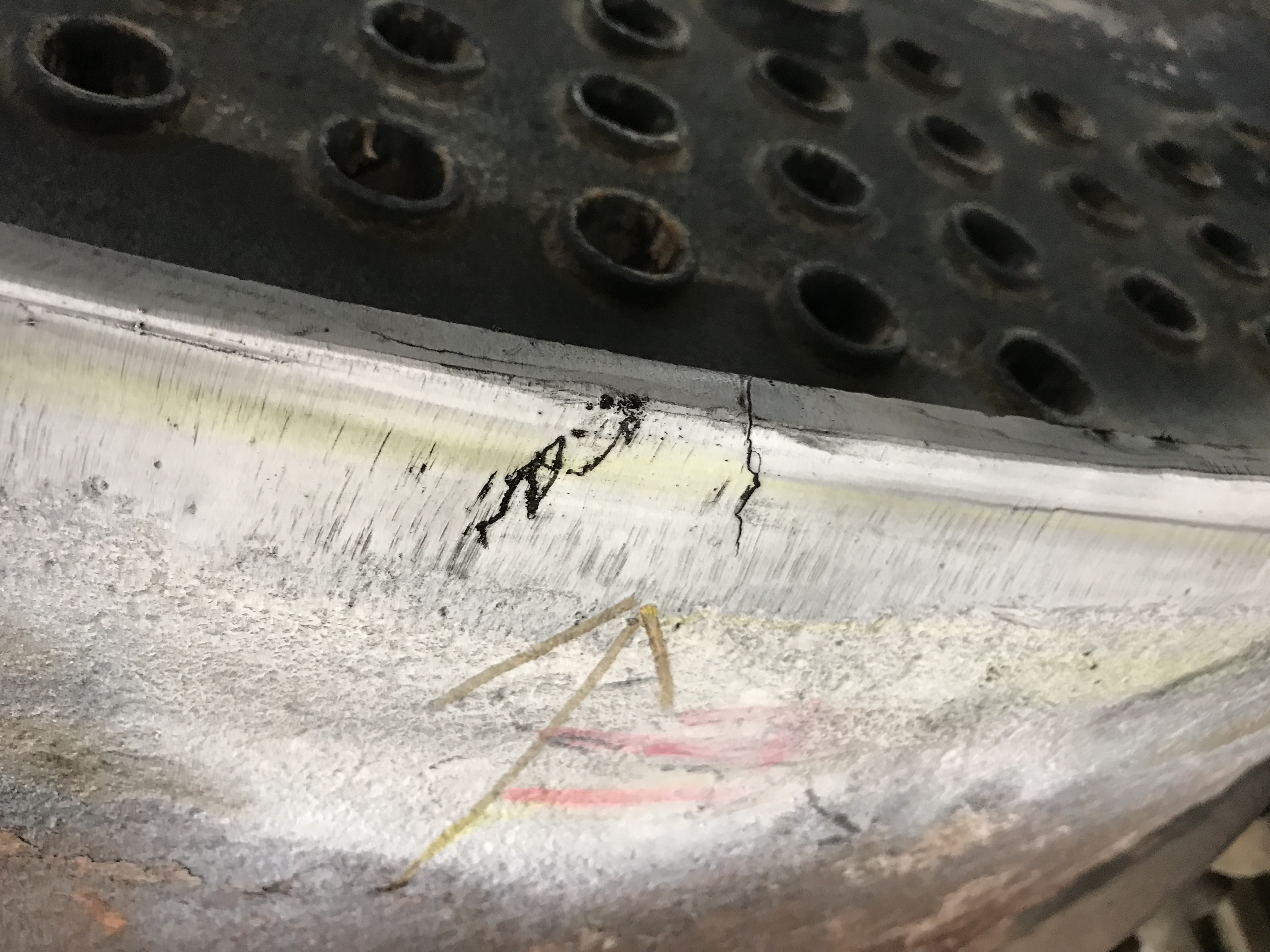

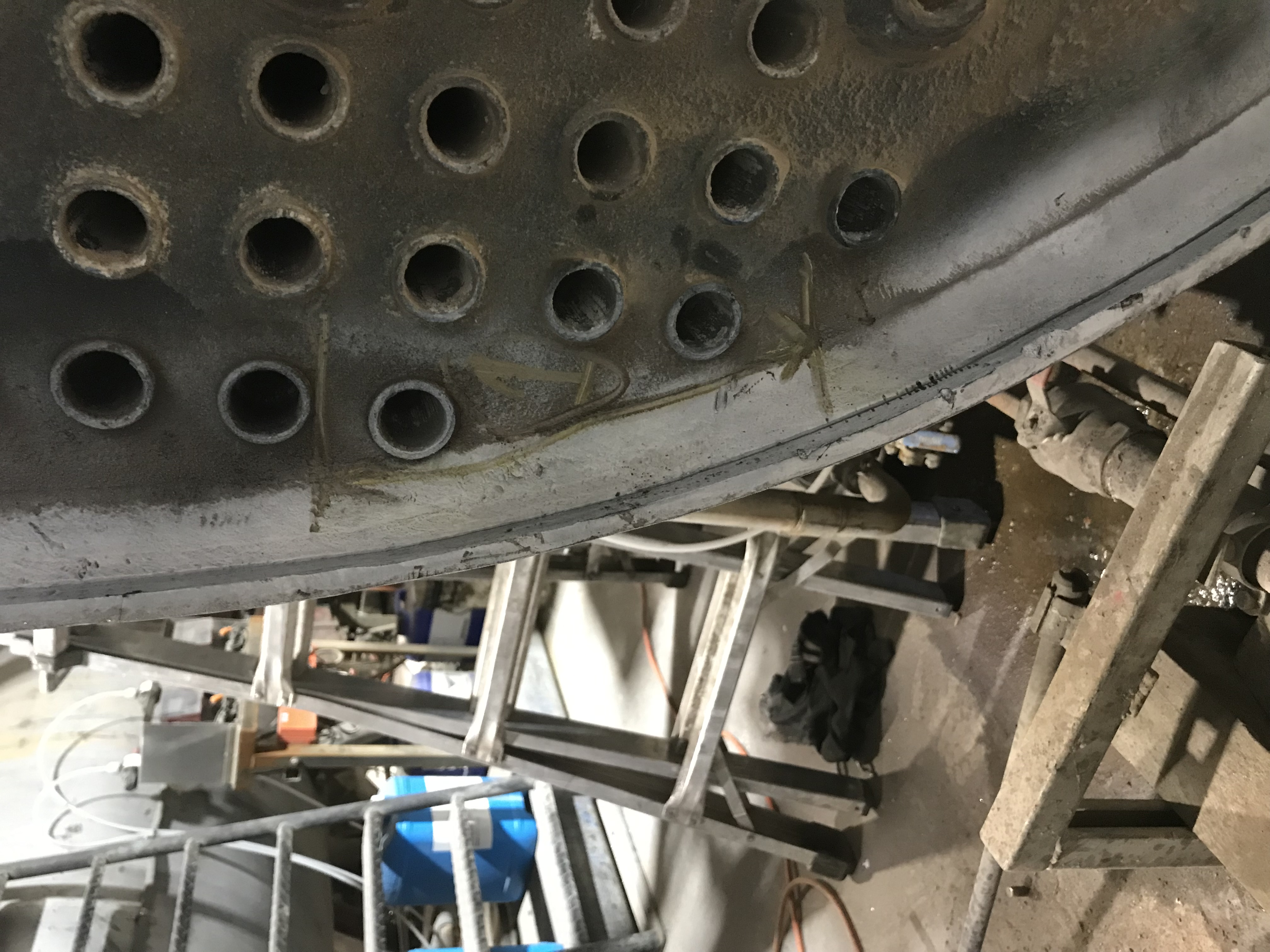

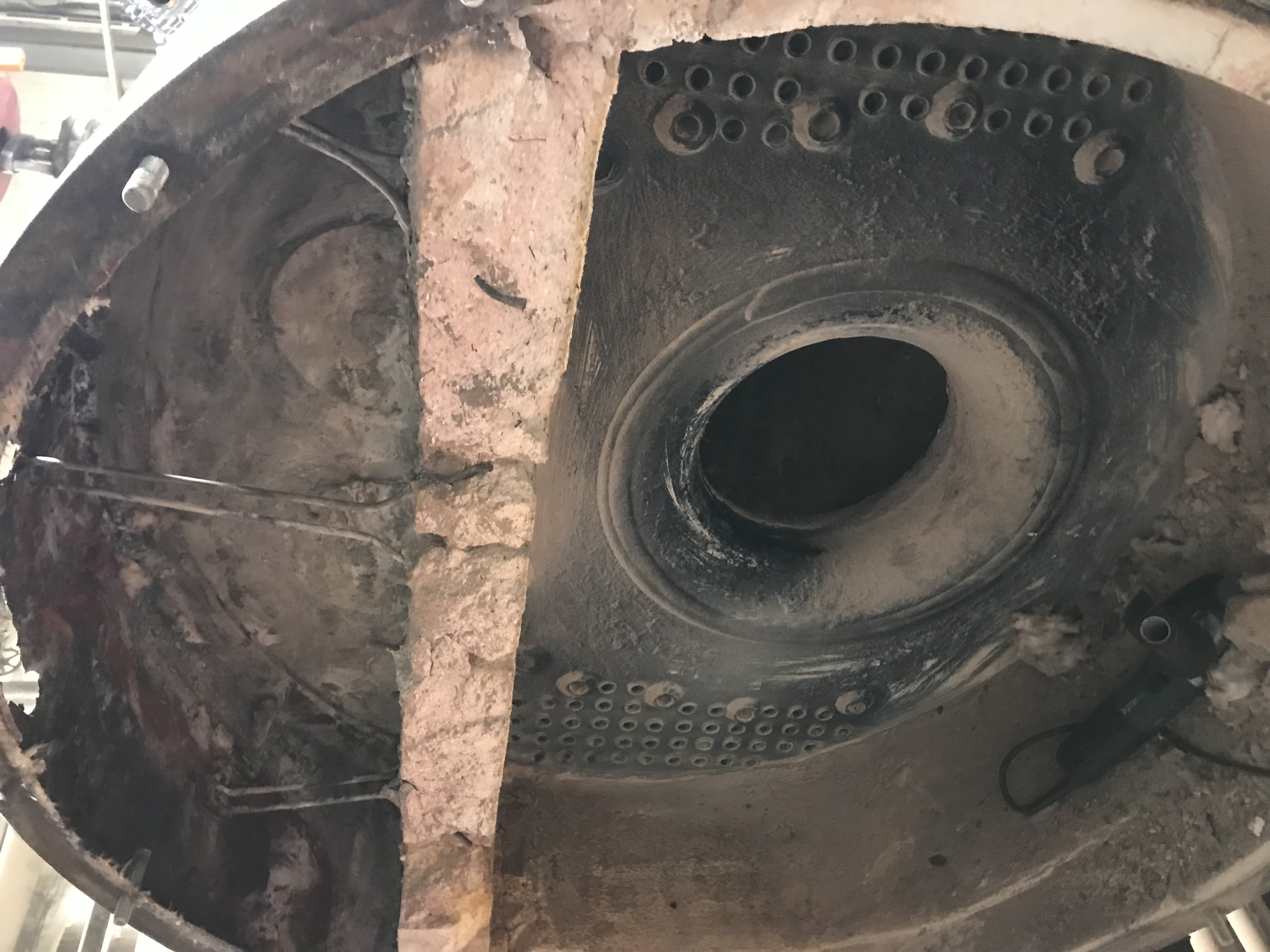

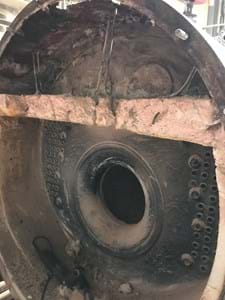

After a thorough inspection on their fourth steam boiler, we found that there were large amounts of corrosion at the rear of the boiler coming from the inside to the out. We removed the cladding to inspect further and discovered there was cracking in the rings and into welds on the boiler shell. The Nu-Way team then removed parts and brought in boiler inspectors, welding contractors and NDT inspector who determined the chamber was unrepairable and had to be repaired. We removed the entire chamber, cleaned off the welds and continued our inspections to ensure it was structurally sound.

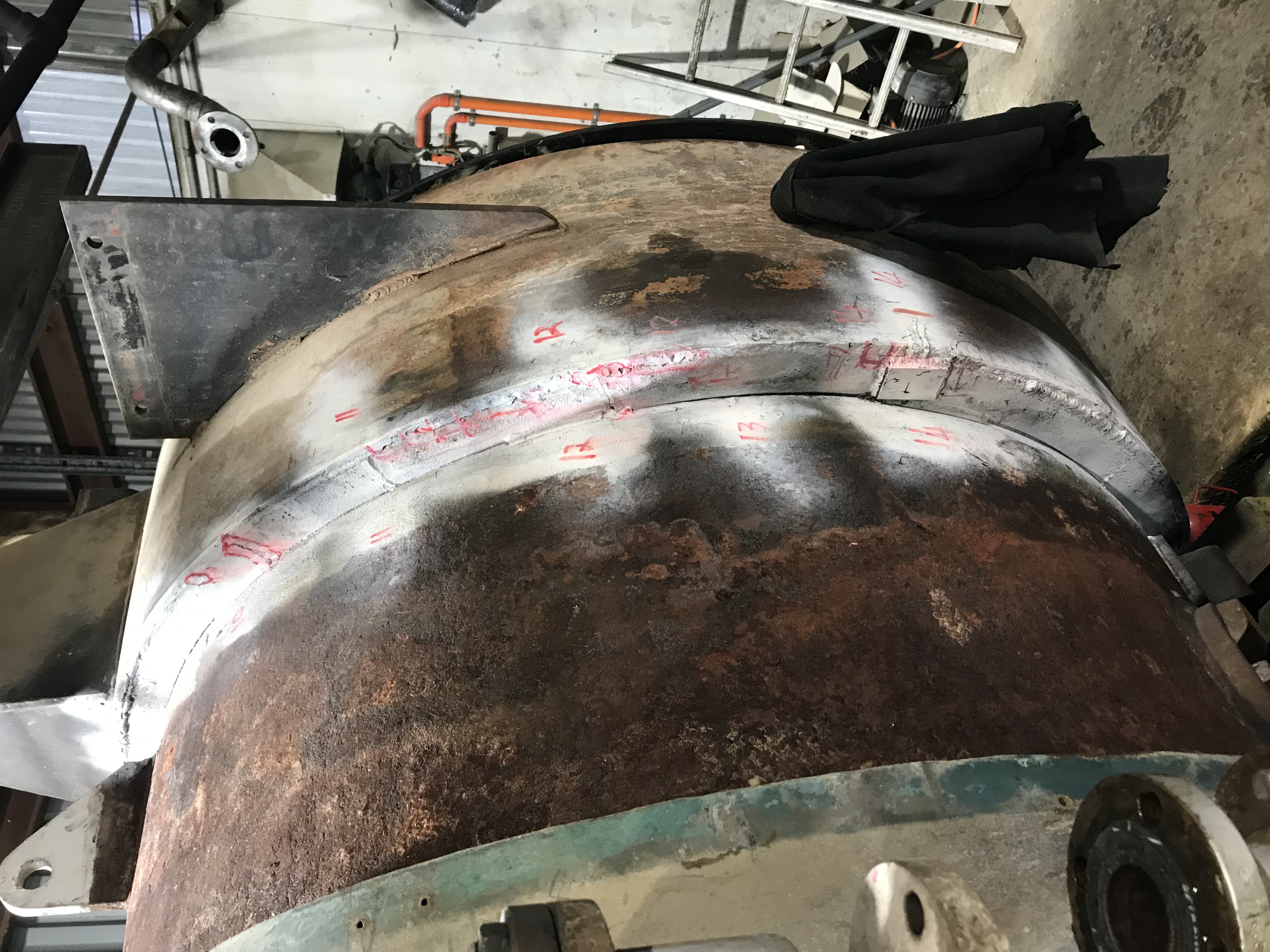

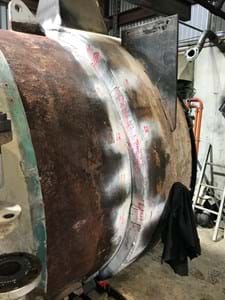

Once cleared, we were able to fit the new chamber and weld it in place and then carry out pressure tests to 200psi. After fitting the legs, casting the new refactory, fit the steam pipe, blow down the line, water feed, and fit the boiler door on. We were then ready to start heating the boiler to cure the refractory as instructed.

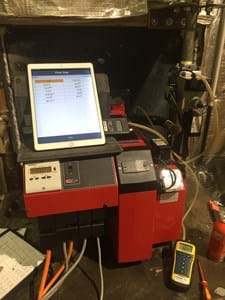

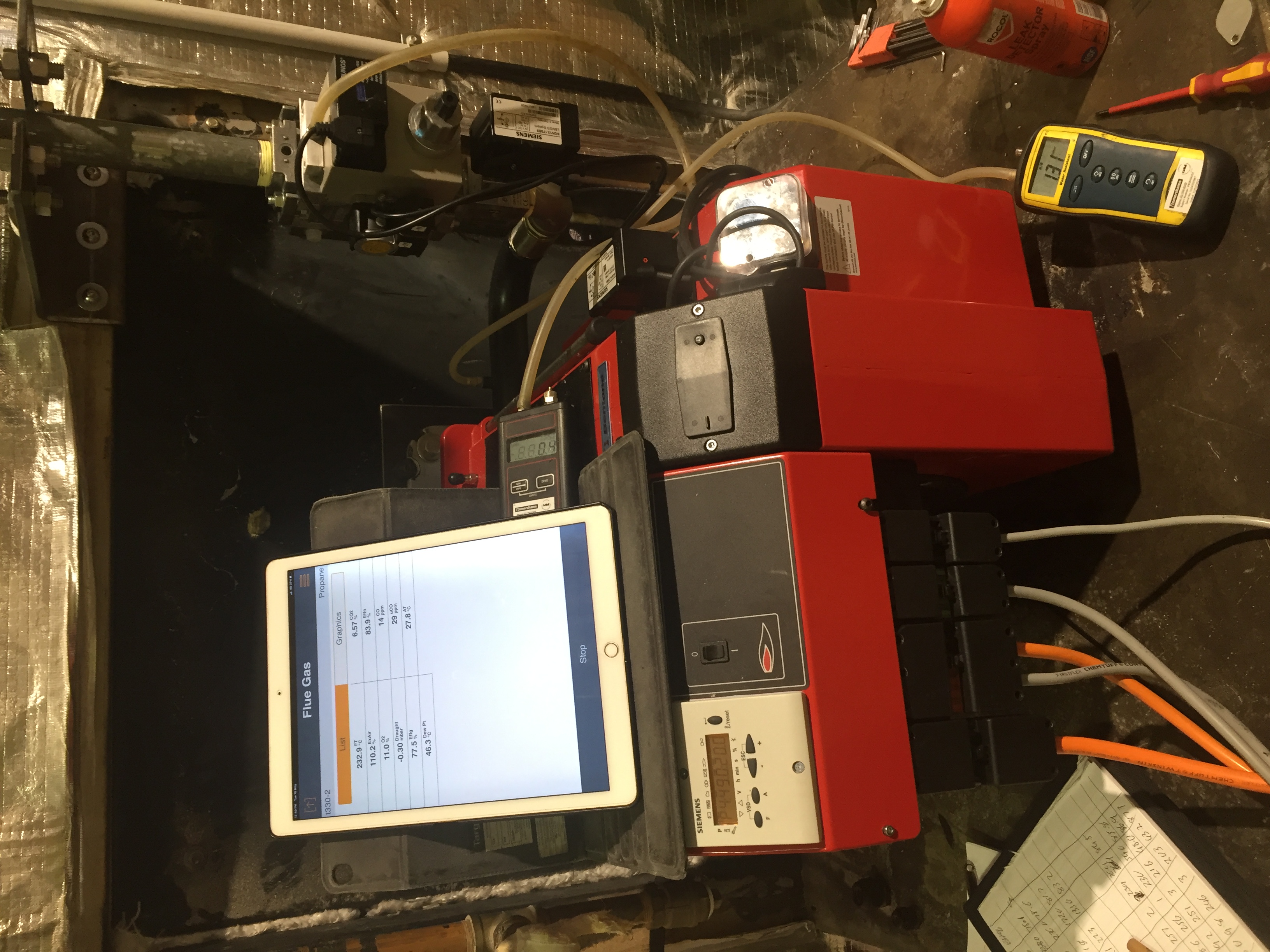

This is just one example of how Nu-Way Energy and its Christchurch branch can effectively service your boilers. Regular boiler tuning saves up to 25% of your energy bill. We offer site servicing of commercial boilers, commercial HVAC and atmospheric water heaters at competitive rates. Regular service agreements can be negotiated to maintain the longevity and energy efficiency of a burner–boiler system.
